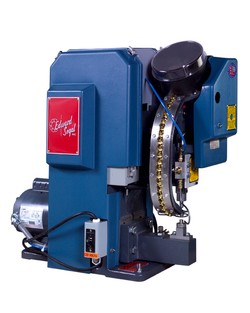

Model 83 Grommet Machines

Model 83 Grommet Machines

Product Numbers
Model G2R83

This version includes the double revolution feature to punch a hole in the material and then feed and set the eyelet.  Features of the G2R83 include:

  • Can accommodate all standard grommet sizes to a maximum of No. 5 Plain;
  • Grommet size can easily be converted with changeover Raceway and setting tools;
  • Includes Air Blowoff to eject slug off the lower tool;
  • Works well with a variety of industrial fabrics including vinyl, cotton, canvas (not recommended for dense nylon or other abrasive materials).
Model G83

This version is suitable for grommet applications where the holes are pre-punched.  Features of the G83 include:

  • Can accommodate all standard grommet sizes to a maximum of No. 5 Plain; and
  • Grommet size can easily be converted with changeover Raceway and setting tools.

Edward Segal Inc. manufactures a full line of the Model 83 attaching machines for grommet applications.  These machines offer a fast, reliable, and efficient solution to maximize the productivity for setting  grommets.  The Model 83 machines are available in several different configurations and accommodate all shapes of eyelets (round, oval or square) and applications.  Model 83 machines are semi-automatic which means the grommet is automatically fed but the washer, if used, is manually placed on the lower die.  For faster, fully automatic operation, Edward Segal Inc. offers several machine models for maximum speed and productivity.


Specifications



Optional Equipment
